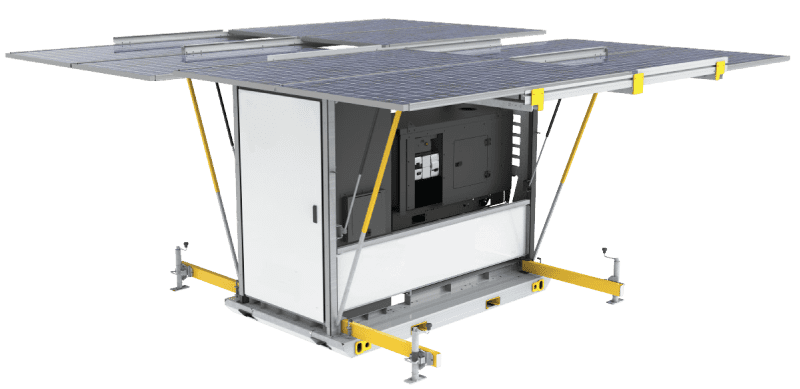

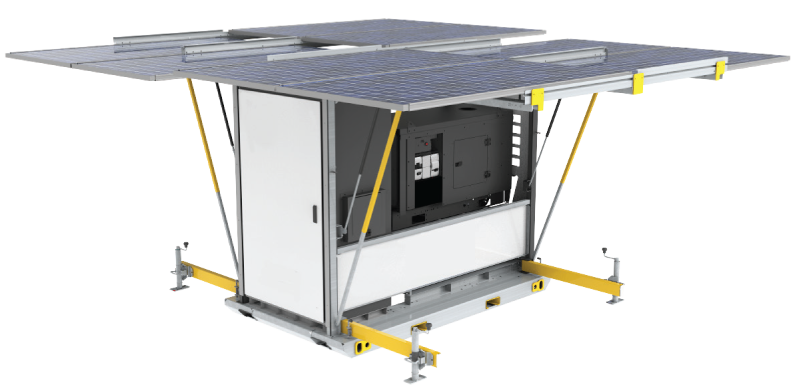

Hybrid Power Systems Helix 3 Energy offers a range of hybrid power systems designed to seamlessly replace traditional diesel generators.
Key Features
Hybrid System
Solar panels, lithium batteries, and a backup diesel generator deliver continuous power with seamless transitions, ensuring no downtime.
Environmental Impact
Reduces diesel consumption by up to 700 litres per week, lowering CO₂ emissions by up to 2 tonnes.
Quiet & Efficient
Low noise levels (as low as 63 dBA at 7 metres with the diesel generator in operation), making it perfect for noise-sensitive environments.
Customisable Power
Offers multiple output options and customisable generator run times for enhanced fuel efficiency or quiet operation.
Remote Monitoring
Equipped with 4G telecommunications, GPS tracking, and cloud-based monitoring, providing remote control and real-time data insights.
Applications
Construction Sites
Powering temporary site operations with reduced diesel dependency.
Remote Locations
Reliable energy for areas with limited or no grid access.
Mining Operations
Sustainable power solutions for off-grid mining camps.
Emergency Power Backup
A dependable backup during outages or disaster recovery scenarios.
Events and Outdoor Activities
Clean, quiet power for festivals, fairs, and outdoor gatherings.
Telecommunication Sites
Continuous power for remote communication towers and infrastructure.
Agricultural Operations
Powering irrigation systems, processing equipment, and farm machinery in remote areas.
Military and Humanitarian Missions
Portable, renewable energy for field operations and disaster relief efforts.
Offshore and Marine Applications
Supplementary power for offshore platforms or vessels with renewable energy.
Temporary Power for Industrial Projects
Powering large-scale industrial projects and construction compounds.
Specifications
| Model | 15kVA | 20kVA | 50kVA | 100kVA |
|---|---|---|---|---|
| Battery Capacity | 20kWh | 30kWh | 60kWh | 120kWh |
| Phase | Single Phase | Single & Three Phase | Three Phase | Three Phase |
| Backup Generator | 20kVA diesel engine | 30kVA diesel engine | 50kVA diesel engine | 100kVA diesel engine |
| Fuel Consumption | 2.65L/hr @ 75% load | 3.80L/hr @ 75% load | 7L/hr @ 75% load | 15L/hr @ 75% load |
| Dimensions | 4490mm x 4762mm x 2211mm (Deployed) | 4300mm x 4200mm x 2200mm (Deployed) | 4490mm x 4762mm x 2211mm (Deployed) | 6100mm x 2440mm x 2590mm (Deployed) |
| Weight | 2,000kg | 2,600kg | 4,040kg (combined generator and battery skids) | 7,500kg |
| Wind Rating | 35 m/sec (126 km/h) | 35 m/sec (126 km/h) | 38 m/sec (136 km/h) | 38 m/sec (136 km/h) |
| Noise Level | 66dBA at 7 meters | 66dBA at 7 meters | 63dBA at 7 meters | 63dBA at 7 meters |
| Solar Array | 4kWP | 4kWP | 8kWP | 5kWP |
| Solar Expandable | Yes | Yes | Yes | Yes |
Different configurations and options available.
Why Choose Helix
Expertise and Experience
With years of experience in the commercial electrical sector, we have the knowledge and expertise to deliver top quality energy storage solutions tailored to your needs.
Customer Support
Our dedicated support team is available to assist you with any questions or concerns, ensuring you receive the best possible service.
Quality Assurance
We use only the highest quality components and materials, ensuring your energy system is built to last and performs at its best.
Tailored for Australian Conditions
Helix 3 Energy understands the unique challenges and opportunities in the Western Australian market. Our BESS is designed to provide reliable and efficient energy storage solutions that align with local regulations and environmental conditions. Whether you are looking to enhance energy independence, reduce operational costs, or ensure an uninterrupted power supply, our BESS is your trusted partner in energy management.
